FD3RF

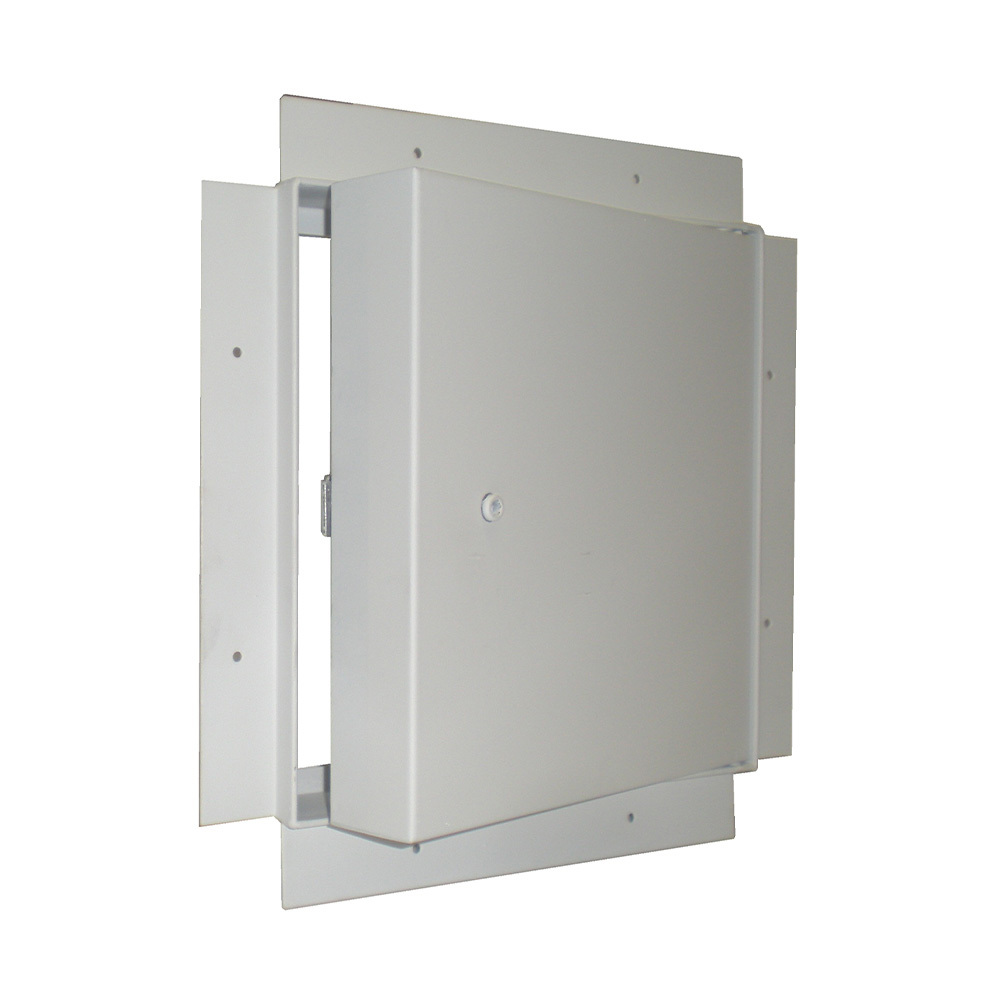

FD3RF - 3-HOUR FIRE-RATED RECESSED FLANGE ACCESS PANEL FOR WALLS & CEILINGS

Are you looking for an access door that gives you a trimless appearance? The FD3RF is trimless and comes with a rigid ⅝” recessed flange for drywall application on your walls or ceilings. This access door is made of galvannealed steel with a satin finish and a 3- hour fire rating.

This access door comes with a 16 gauge steel frame and is more prominent with a depth of 3 and ¼”. The flange is concealed and recessed ⅝” that allows wallboard installation on top. Its 18 gauge door panel contains 2-½” inches of high-temperature insulation material and a 22 gauge liner.

The FD3RF has a concealed continuous rod hinge that secures the door panel. If the size of the access door you choose is greater than 48” in a wall application, it comes with a continuous piano hinge. Its panel closer allows the door to close and latch by itself from an open position of 90 degrees.

Benefits of Choosing the FD3RF

• Trimless finish
• 3-hour fire rating
• Self-latching and closing
• Durable and Secure
• Convenient and Safe

With Access Doors and Panels, you can get the fire-rated access door you require. If you want to know more about our products, you can always call us at (800) 609-2917 and speak to our product experts. You can always request a quote today for future orders or if you plan to order in bulk.
