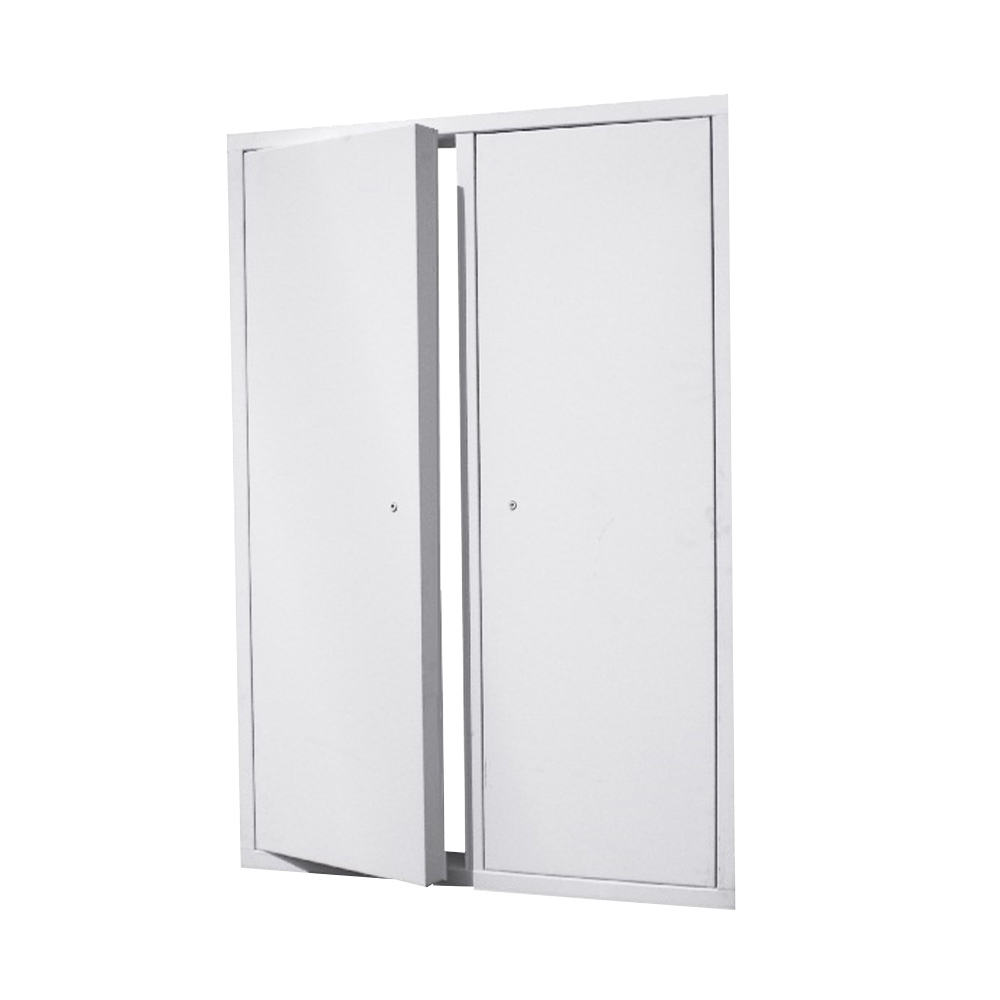

FD3D 3-HOUR FIRE-RATED INSULATED, DOUBLE-DOOR ACCESS PANELS FOR WALLS & CEILINGS

For wall and ceiling installations, the FD3D is ideal if you want the largest access panel possible. You can opt for galvannealed steel with a satin finish or 304 stainless steel. It comes with a double leaf offering flexibility and safety as it reduces the need for a bigger swing radius into rooms.

Its largest frame size is 14 gauge with a removable center mullion with a frame depth of 3 ¼”. The FD3D fire-rated insulated double door access panel comes with a 2 ½” high-temperature insulation material. Its 18 gauge door panel comes with its own 22 gauge liner.

This access door comes with a concealed continuous rod hinge. If the wall position is 48” or longer, you will get an FD3D with a continuous piano hinge. If you opt for the stainless steel FD3D, you will get a stainless steel continuous piano hinge. This access door has a 3-hour fire rating for wall and ceiling installations and an automatic panel closer that closes and latches the door from an open position.

Benefits of Choosing the FD3D

• 3-hour fire rating
• Double leaf
• Largest
• Wall and Ceiling Installations
• Durable and Convenient

If you are looking for fire-rated access panels, know that you can trust Access Doors and Panels for quality products. If you want to learn more about the services we have to offer, you can give us a call at (800) 609-2917. We also provide customized access doors and panels for your needs.
