FBR-5060

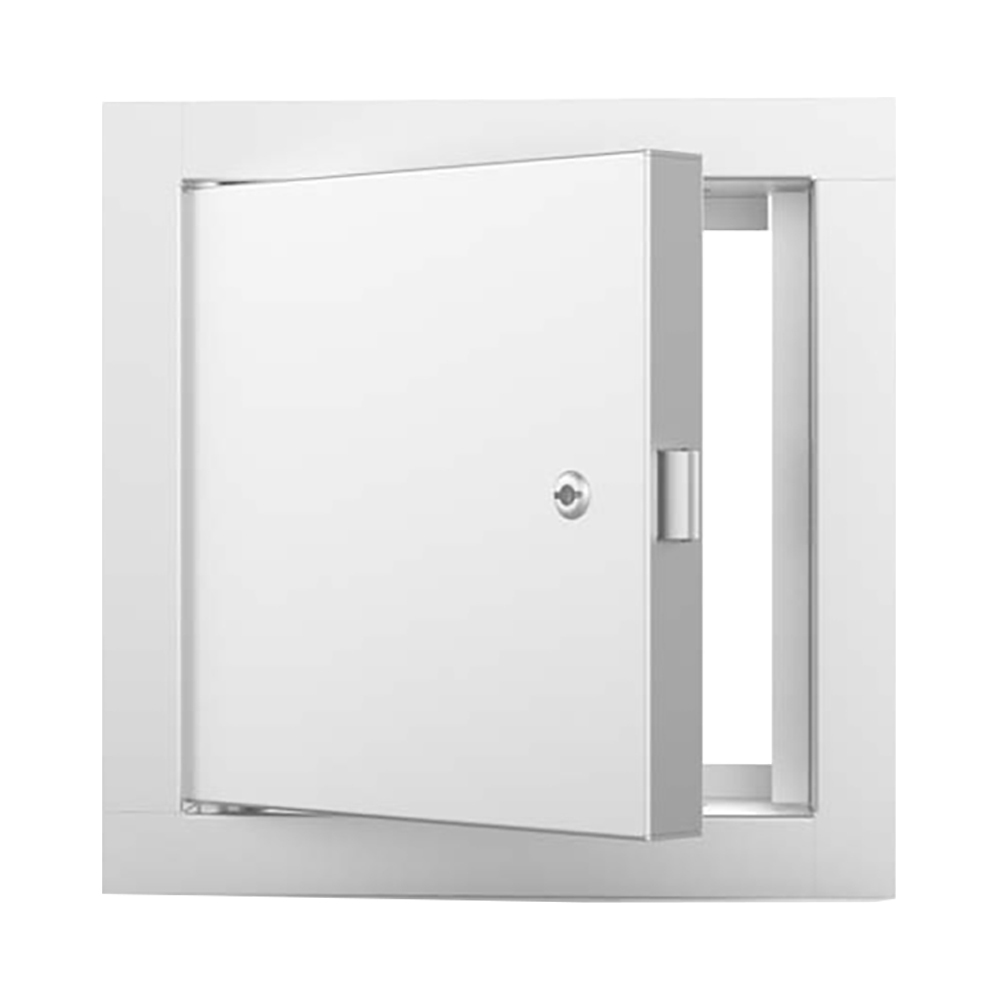

FBR-5060 Fire-Rated Uninsulated Removable Panel

In fire-rated buildings, wall openings can be a weak spot, making it easier for fire and smoke to spread if they’re not properly sealed. If you need access to electrical panels, plumbing, or mechanical systems, you don’t want to struggle with a complicated solution.

The FBR-5060 Fire-Rated Uninsulated Removable Panel keeps your fire-rated walls intact and up to code while making maintenance quick and hassle-free. Its UL 1.5-hour and optional ULC 2-hour fire rating helps meet building codes and regulations, so you can focus on your project without worrying about compliance.

The self-closing, self-latching design ensures the panel stays securely shut, reducing risks, and requiring no extra effort. If you're looking for a durable, secure, and easy-to-use access panel, this solution checks all the boxes.

Why You Should Choose the FBR-5060

• Ensures Reliable Fire Resistance: With a 2-hour fire rating, this panel helps prevent fire from spreading for a crucial period. Plus, it meets strict building codes, so you can confidently move forward.
• Saves Time on Maintenance: The removable door panel and inside latch release allow for quick, tool-free access to essential systems, making inspections and repairs faster and more efficient.
• Provides Long-Term Durability: Built from sturdy 16-gauge steel or stainless steel with a reinforced frame, this panel stands up to daily use in commercial and industrial settings.
• Offers Flexible Locking Options: Need extra security? The panel can be customized with rim or mortise cylinder locks, ensuring only authorized personnel can access critical areas.
• Adapts to Your Project Needs: Available in multiple sizes with a baked white prime coat that can be painted over, this panel blends seamlessly into different environments while allowing for customization.

If you're interested in expanding your knowledge of fire-rated products, check out our blog on the benefits of installing a fire-rated access door .

Product Specifications

• Material : 16-gauge steel or stainless-steel door and mounting frame
• Door Design : Flush to frame with reinforced edges, 1” wide flange
• Hinge : Concealed for a seamless appearance
• Fire Rating (Walls): UL 1.5-hour “B” label; Optional ULC 2-hour “B” label
• Compliances : UL 10B, CAN/ULC S104, NFPA 80
• Latch : Universal self-latching bolt operated by knurled knob or flush key
• Locking Options: Can be prepared for rim or mortise cylinder locks when master keying is required
• Finish : Baked white prime coat, additional paint recommended for corrosion resistance
• Features : Self-closing and self-latching for security
• Access : Inside latch release for quick access
• Design : Removable door panel for easy maintenance

Installation Instructions

1. Set up the Opening: Ensure the wall opening is clean and meets the required dimensions for the FBR-5060 panel (maximum size: 36” x 48”). The frame should be flush with the wall surface, and the surrounding structure must be fire-rated to support the panel’s fire rating.
2. Install the Frame : Position the mounting frame into the prepared wall opening. Use appropriate fasteners to secure the frame, ensuring it is level and flush with the wall. Verify the frame is securely anchored and properly aligned to prevent any gaps that could compromise the panel’s effectiveness.
3. Attach the Door Panel: Align the door panel with the mounted frame, ensuring the concealed hinge is positioned correctly. Gently attach the panel to the frame, making sure the self-closing, self-latching mechanism functions properly and the panel is securely in place.
4. Test the Latch and Locking Mechanism : Once the door is installed, test the self-latching bolt to ensure smooth operation. If necessary, install any optional rim or mortise cylinder locks for added security. Finally, check the inside latch release to confirm it works properly for easy access when needed.

In addition to our high-quality fire-rated panels, we also offer smoke vents to ensure optimal ventilation. Our smoke vents are designed for seamless integration into various building types and require minimal upkeep.

Ready to secure your space while maintaining smooth access? Choose the FBR-5060 Fire-Rated Uninsulated Removable Panel for improved building performance. Learn more about our shipping information for details on ordering and delivery.
