AP-5010

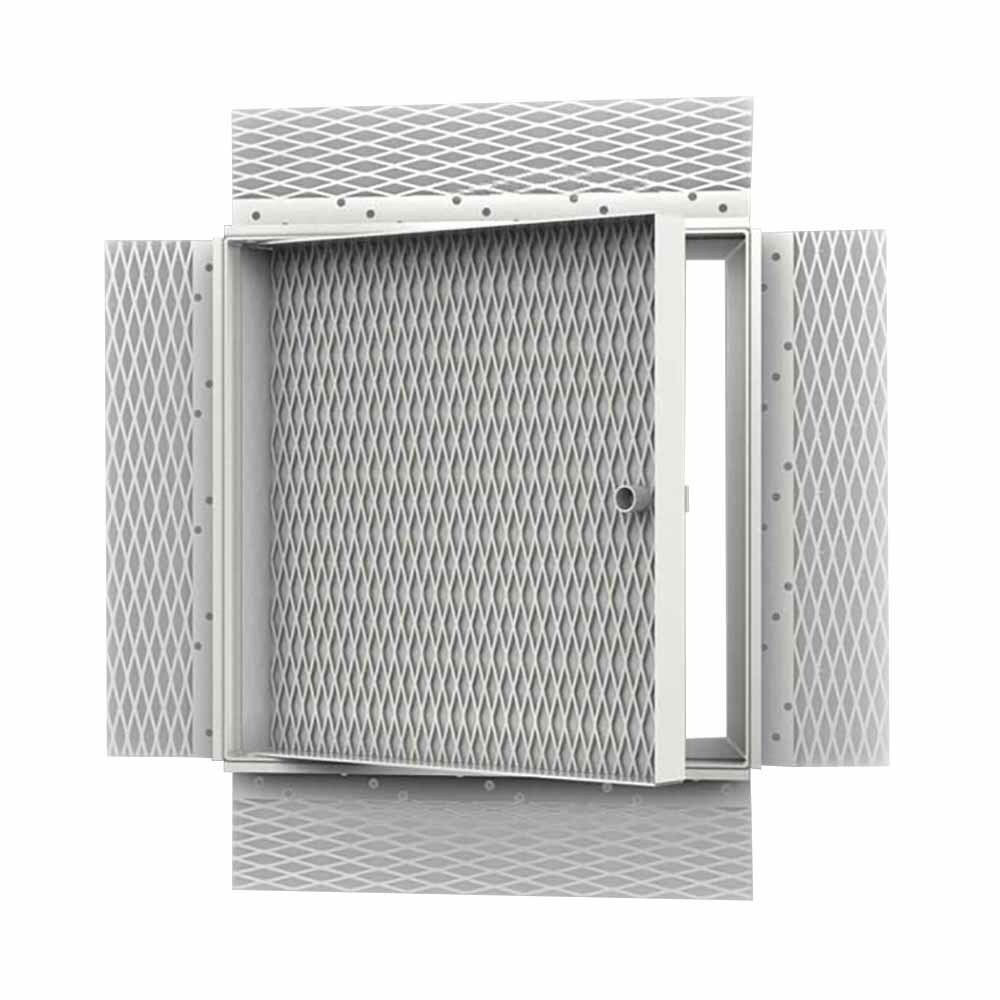

The AP-5010 Series Recessed Access Door is designed for use in acoustical plaster walls and ceilings. The door is recessed 5/8" and is lined with self-furring lath. An expansion casing bead with a 3" wide galvanized lath, included as part of the frame, provides a clean, tight finish between the frame and plaster and also adds reinforcement.

Product Features:

• The door is recessed 5/8" and is lined with self-furring lath
• Expansion casing bead with 3" wide galvanized lath

SPECIFICATIONS:

• DOOR SIZE: 12" wide x 12" high
• ROUGH OPENING SIZE: 12 ⅜" wide x 12 ⅜" high
• MATERIAL: 16 gauge cold rolled steel door, 14 gauge mounting frame
• LOCK/LATCH: 1 x Flush to the surface, screwdriver operated cam latch
• FLANGE: Expansion casing bead with 3" wide galvanized lath, recessed 3/4" to receive plaster
• HINGE: Concealed, pivoting rod type.
• FINISH: 5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel
