EHN

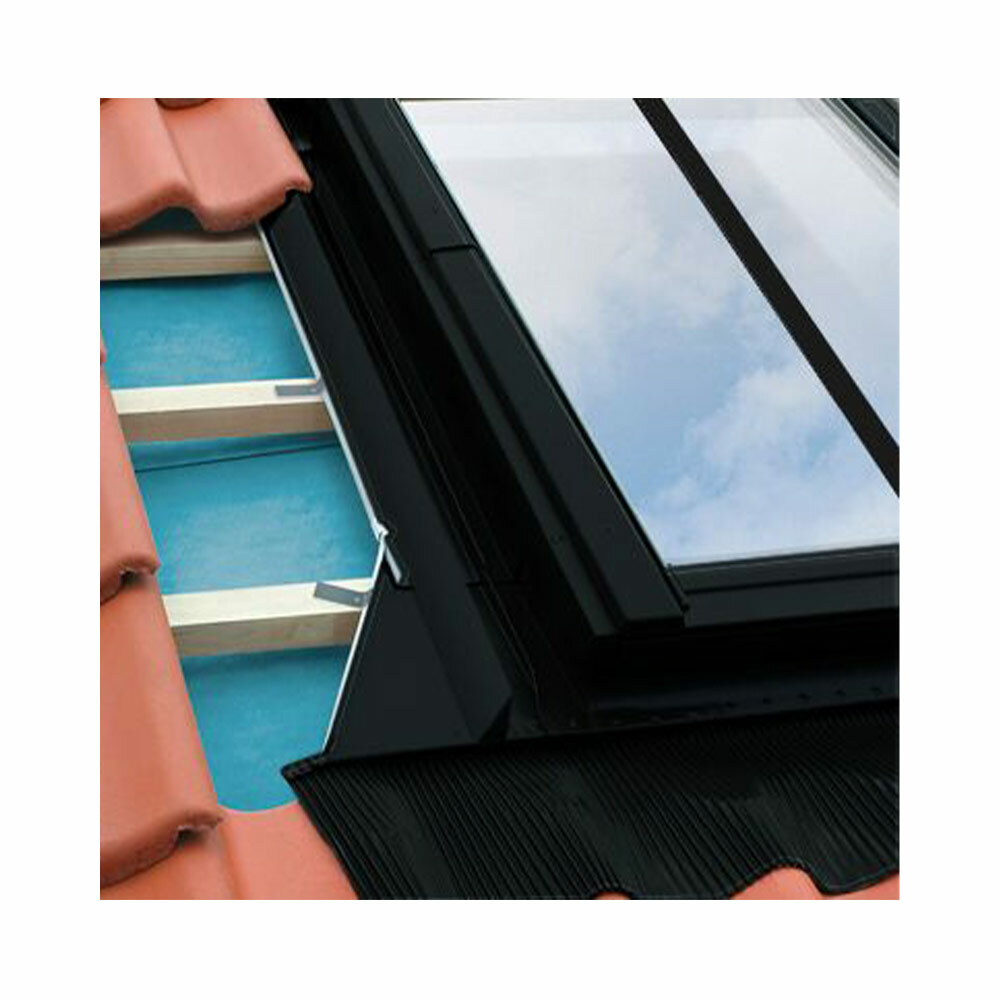

Our EHN High-Profile Flashing Kit is the perfect addition to your pivot windows because they provide protection against moisture, rainwater, and other weather elements. The flashing kit has its plastic glued to the underside of the lower element to create an easy and stable link to the roof covering. The EHN comes with added thermal insulation for roof coverings of up to 90mm profile depth.

The flashing has a gutter that lets weather condensation drain away from the window. You can also use the flashing kit as a module flashing for windows installed in vertical and horizontal combinations or block groups. You can install this product for one installation depth, permitting window installation at a level N (+3) -flashing EHN-A.

EHN Components

The flashing consists of four basic elements (lower element, two sides elements and top element). A long and wide elastic apron finishing is the lower element that allows easy connection with high profiled roof coverings. The lower element has a plastic mat glued to the underside, allowing the flashing to adhere to the roof covering for a neat fit.

The flashing side-sealing channels factory equipped with sponge seals provide protection against windblown dust, leaves, rain and snow. The flashing is equipped with a weep flap to allow condensation to drain away from the window.

Why Get the High-Profile Flashing Kit?

• Insulates pivot windows
• Tile supporting profile
• Prevents condensation on the window
• Secure connection to the window with the roof slope

Access Doors and Panels has a range of EHN sizes to fit your construction project. You can request a quote if you have plans to make a bulk order in the future. And if you have questions or concerns about our products, contact us at (800) 609-2917 and we’ll be right with you at every step of the buying process!
