60" x 120" Aluminum Equipment Roof Hatch - Double Leaf - Babcock-Davis

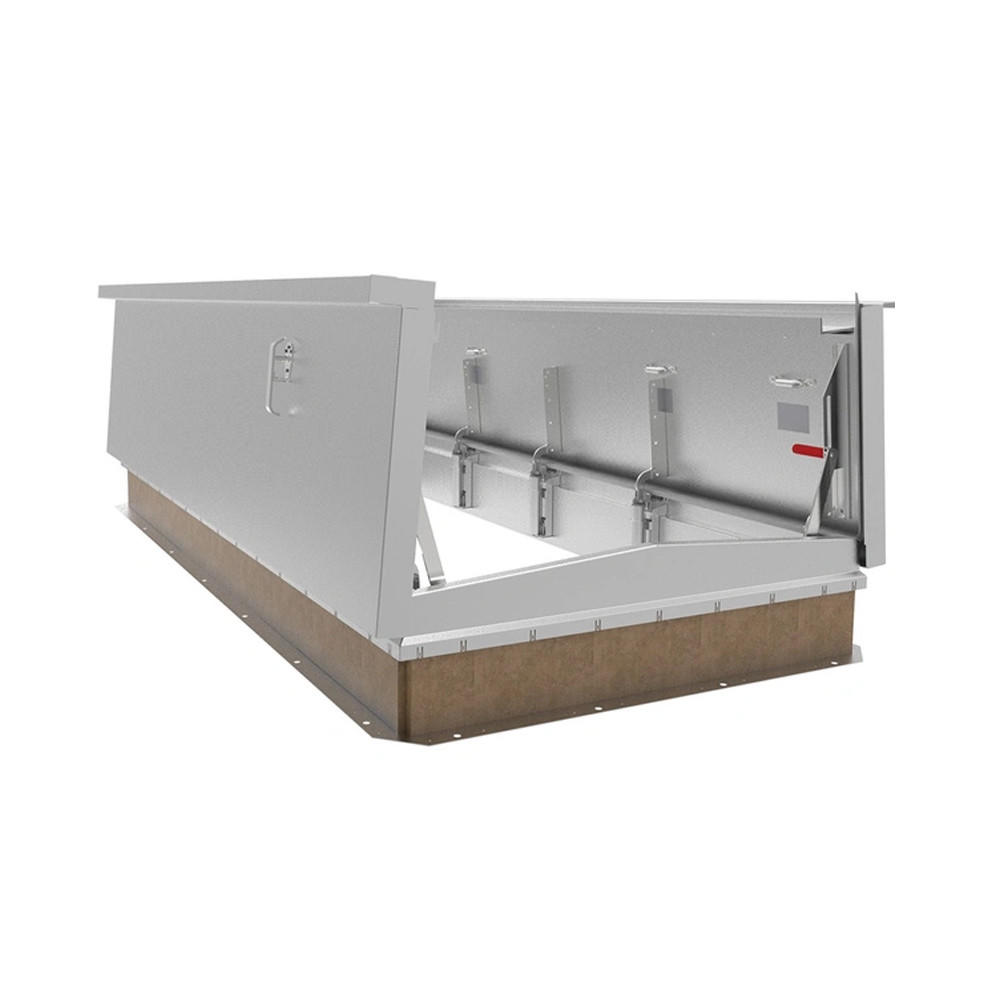

BRHEA-D - 60" x 120" Aluminum Equipment Roof Hatch - Double Leaf - Babcock-Davis



We are introducing our high-quality BRHEA-D Aluminum Equipment, Roof Hatch - Double Leaf, designed to provide safe and easy access to your building's roof for maintenance, inspections, and equipment installation.

The Aluminum Equipment, Roof Hatch - Double Leaf is a durable and corrosion-resistant aluminum, making it strong yet lightweight. The double-leaf design provides a larger opening than a single-leaf hatch, making it perfect for larger equipment that needs to be on the roof. The hatch is weather-resistant, thanks to the EPDM gasket seal, and features a secure padlock hasp for added security.



Why Install BRHEA-D Roof Hatch?

Security: The roof hatch features a secure padlock hasp, which helps to prevent unauthorized access to your building's roof. The added security measure can give you peace of mind, knowing your building is protected.

Convenience: The double-leaf design of our roof hatch provides a larger opening than a single-leaf hatch, making it easier to move larger equipment onto the roof. This convenience can save you time and effort when performing maintenance, inspections, or equipment installations.

Compliance: Depending on your building type, you may need to meet specific compliance requirements. Our Aluminum Equipment, Roof Hatch - Double Leaf, can help you meet these requirements, as it is built to the highest standards and meets all the relevant codes and regulations.



Specifications:

• Material, Aluminum: 11 gauge
  Steel: 14 gauge galvanneal
  Stainless Steel: 14 gauge Type 304
• Finish, Powder coat (steel), Mill (aluminum) or 2B Matte (stainless steel)
• Color, Red Oxide (steel)
• Cover, Formed aluminum metal cover withstands a live load of 40psf with a maximum deflection of 1/150 the span
• Curb, Single wall curb with EZ tab counterflash and mounting flange

• Insulation, 1" polystyrene in cover and fiberboard around curb
• Gasket, Extruded EPDM adhesive backed gasket seal, continuous around cover
• Spring/Hinge Assembly, Zinc plated steel tamper-proof hinges contained within spring assembly, includes steel compression springs
• Hold Open Arm, Zinc plated steel automatic hold open arm locks cover in open position
• Latch, Zinc plated steel latch with exterior and interior turn handles and padlock hasps

Contact Us!

Investing in the BRHEA-D Aluminum Equipment Roof Hatch - Double Leaf means investing in the safety and functionality of your building. Call us today at (800)-609-2917, and our experts are ready to answer your questions or give you a personalized quote!
