22" x 30" CTR Aesthetic Panel with Hidden Flange - Cendrex

Aesthetically pleasing door panels can elevate any space. Clean lines and minimalism are paramount in modern design. Traditional door panels often have visible flanges or hinges that may detract from a space's appearance. The CTR panel stands apart, offering a sleek, contemporary aesthetic.

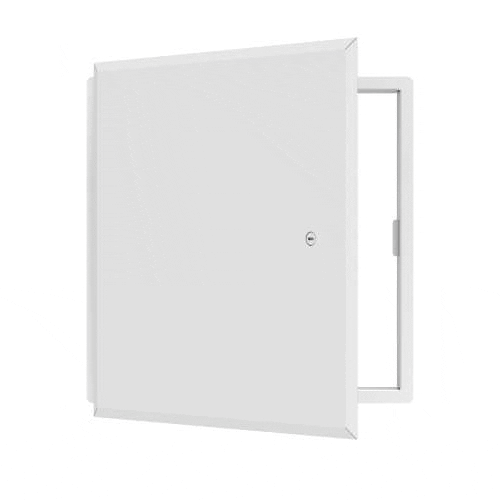

The 22" x 30" CTR Aesthetic Panel with Hidden Flange – Cendrex is designed to enhance design and security. It features a hidden flange, beveled edges, and a key-operated cam latch, providing a cleaner look and increased protection. Constructed from durable cold-rolled steel, this panel is suitable for both walls and ceilings.

Why Should You Use the 22" x 30" CTR?

  • Enhanced Aesthetics: The concealed flange and beveled edges create a sleek, modern look that blends seamlessly with various interior designs.
  • Improved Security: The key-operated cam latch provides greater security than traditional door panels.
  • Versatility: Suitable for both walls and ceilings, making it adaptable to different applications.
  • Durability: Constructed from cold-rolled steel, ensuring long-lasting performance.
  • Easy Installation: The pantograph hinge offers a smooth, reliable opening and closing mechanism.
  • Customizable: The number of screwdriver-operated cam latches can be adjusted to fit specific door dimensions.

Product Specifications

  • Dimensions: 22" x 30"
  • Material: 16-gauge cold rolled steel
  • Hinge: Concealed, exclusive pantograph double arm design, found on the second dimension (height).
  • Locking Mechanism: Key-operated cylinder cam latch or screwdriver-operated cam latch (number varies based on door dimensions)
  • Flange: 7/8" concealed flange, made of cold rolled steel
  • Frame: 1½" in depth, made of cold rolled steel
  • Rough Opening: Door sizes + ¼" or + 6mm (about 0.24 in)
  • Finish: High quality white powder coat primer
  • Packaging: Individually wrapped, 1 door per box

Access Doors and Panels offers a range of wall access doors and roof skylights designed to blend seamlessly with your project's aesthetic. Our solutions provide convenient access without compromising the space's appearance.

Don't settle for ordinary door panels. Elevate your building with the 22" x 30" CTR Aesthetic Panel with Hidden Flange - Cendrex. Its sleek design, enhanced security, and durability will transform any interior. Contact us to request a quote, or call (800) 609-2917. Our team of experts is ready to answer your questions.

Product Spec Sheet:
Door Size:
22" wide x 30" high
Rough Opening Size:
22 1/4" wide x 30 1/4" high
Material:
Steel
Finish:
High Quality White Powder Coat
Flange:
Hidden
Hinge:
Concealed, exclusive hinge design
Lock / latch:
5
Cross Reference:

See CTR-22-30 in action on YouTube!

Excellent Services
Cendrex 22" x 30" Aesthetic Panel with Hidden Flange - Cendrex
SKU # CTR-22-30

22" x 30" Aesthetic Panel with Hidden Flange - Cendrex

$158.23
$113.02
(You save $45.21 )
