20" x 20" General Purpose Panel with Flange

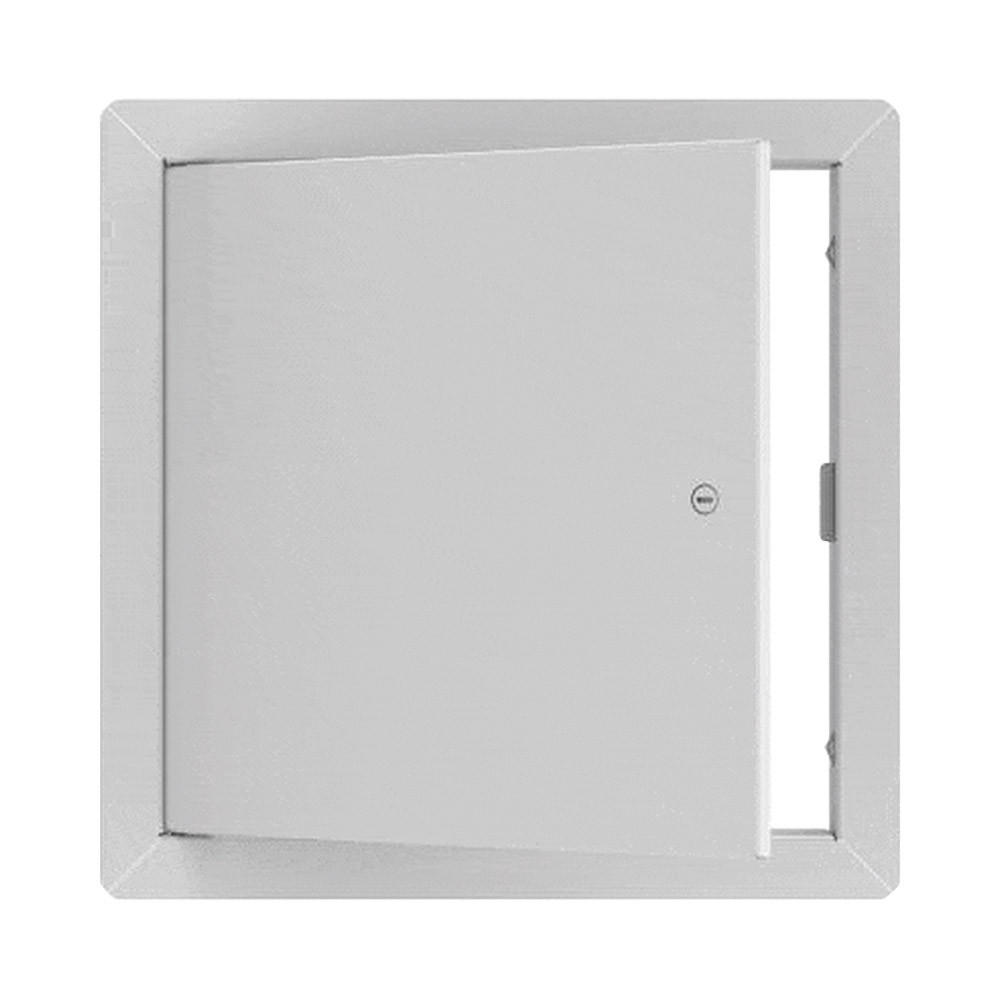

Introducing the AHD 20" x 20" General Purpose Panel with Flange, a top-of-the-line universal access door designed by Cendrex, now available at Access Doors and Panels. This flush universal access door with an exposed flange offers quick and easy installation on non-rated walls and ceilings made of any material.

Why Choose AHD?

Our AHD General Purpose Panel with Flange is the epitome of versatility and efficiency in construction. This flush, universal access door is equipped with an exposed flange, making it a perfect fit for a wide range of non-rated walls and ceilings, regardless of the material.

Key Features and Benefits:

Universal Design: Its universal design ensures that it can be used in various settings, making it a great stock item for diverse project requirements.

Easy Installation: This access door reduces labor time and costs and is designed for quick and effortless installation.

Material Quality: Made from 16-gauge cold-rolled steel, it guarantees durability and longevity.

Locking Mechanism: The screwdriver-operated cam latch ensures secure closure while remaining easy to operate.

Hinge Design: The hot rolled and stamped steel pin hinge provides reliable support and smooth operation.

LEED V4 Compliance: This product meets LEED V4 requirements, making it an eco-friendly choice.

Aesthetic Finish: A high-quality white powder coat primer offers a clean, professional look and is paintable to match any decor.

Specifications:

• Material: 16-gauge cold-rolled steel
• Hinge: Hot rolled and stamped steel pin hinge (located on the second dimension - height)
• Locking Mechanism: Screwdriver-operated cam latch in cold-rolled steel
• Flange: 1" exposed flange
• Frame: 1½" in depth
• Rough Opening: Door sizes + ¼" or + 6mm
• Finish: High-quality white powder coat primer
• Packaging: Individually wrapped, 1 door per box

Your Ideal Solution for Diverse Construction Needs

Whether you're working on commercial or residential buildings, the AHD 20" x 20" General Purpose Panel with Flange is an exceptional choice for its adaptability, robust construction, and ease of installation. It's not just an access door; it's a commitment to quality and functionality.

For more information or to place your order, contact Access Doors and Panels at 1-800-609-2917. Our team is ready to assist you with your construction needs. Remember, if you need a custom size, we can help!

Product Spec Sheet:
Door Size:	20" wide x 20" high
Rough Opening Size:	20 1/4" wide x 20 1/4" high
Material:	Steel
Finish:	High Quality White Powder Coat"""
Flange:	1 flange"
Hinge:	Concealed pin hinge
Lock / latch:	1 x Screwdriver Operated Cam Latch
Cross Reference:	Comparison Tool
